Parker ATI Aerospace & Paint Finishing

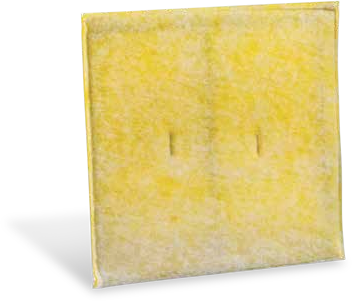

ATI OSM-100™ Panel Filter
NESHAP-compliant high-efficiency paint overspray panel, MERV 13. Stage-two filter in three-stage EPA 319 systems or a standalone high-efficiency filter.
- Three-ply media with an open fibre structure on the air-entering side for depth loading
- Self-sealing, no clips or latches
- Keeps motors, fans and ductwork clean
- Recommended final resistance 1.00" W.G.; maximum operating temperature 200°F (93°C)
| Nominal size (in) | Rated air flow | Initial resistance | MERV | Paint removal efficiency | Media area |
|---|---|---|---|---|---|
| 24 × 24 | 480 CFM | 0.67" W.G. | 13 | 99.99% | 4.0 sq ft |
| 20 × 20 | 330 CFM | 0.67" W.G. | 13 | 99.99% | 2.8 sq ft |
Supply to: United Kingdom, United Arab Emirates, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Nigeria, Kenya, Egypt and worldwide. Price and lead time on request.
